Foundry Materials

Reduced VOC emission

High strength characteristics resulted reduction in binder costs by reducing resin addition by 10-20%

Fast curing systems, reducing production time, and improving productivity

80% less furfuryl emissions

High reactivity

'>

Reduced VOC emission

High strength characteristics resulted reduction in binder costs by reducing resin addition by 10-20%

Fast curing systems, reducing production time, and improving productivity

80% less furfuryl emissions

High reactivity

'>

• Reduced VOC emission
• High strength characteristics resulted reduction in binder costs by reducing resin addition by 10-20%
• Fast curing systems, reducing production time, and improving productivity
• 80% less furfuryl emissions
• High reactivity

Features

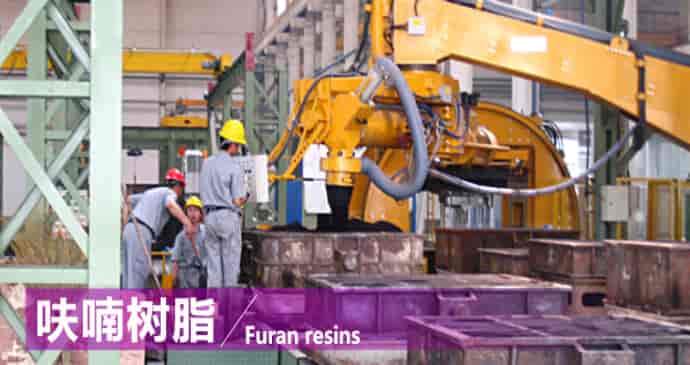

• No-bake furan resin for steel castings
• No-bake furan resin for Ductile Iron castings
• No-bake furan resin for Gray Iron castings
• No-bake furan resin for Non-ferrous alloy

• Free formaldehyde is less than 0.1%
• Lower viscosity
• Higher reactivity with higher productivity
• Higher strength
• Lower gas evolution
• Excellent castings surfaces
• Eco-friendly

Sulphonic Acid Hardener

• Sulphonic acid series hardener is in accompany with no-bake furan resin
• Low viscosity, easy mixing, pale yellow to brown transparent liquid

Low Sulphur Hardeners

• Hardener for no-bake furan resin
• 0-6-% sulphur content less than sulphonic acid hardeners
• Reduces the tendency to hot tearing caused by sulphur inclusion on steel casting surface and decreases surface under-nodulizing
• Less smell during moulding and pouring
• Sulphur accumulation is less during sand recycles
• De compounded sulphur composition is reduced in workshop, and the corrosive to sand equipment is less
• Improve working conditions with eco-friendly features

• Maintain consistent stripping times
• Hardener addition is controlled by the computer inside the regulator
• Only two hardeners are needed
• Reduce hardener addition
• Process optimization

• As one type of no bake sand process, ester cured alkaline phenolic resin owns high productivity, easily moulding, good casting quality, energy saving and eco-friendly
• One of the preferred processes for steel castings
• Less gas evolution and eco-friendly
• Free N, P, S elements, less casting defects such as pin holes etc. higher surface quality
• Fast curing ration between the bench life to stripping time is 40-50%
• Wider tolerance quest for the acid demand value and water content of the sand, and alkaline sand can be used
• Widely used for steel, iron and non-ferrous castings

CO2 cured alkaline phenolic resin process offers the longer bench life, convenient operation, and effectively compensates for the poor collapsibility of the water glass sand process.

• Simple process, high productive. The pattern can be produced by using various materials
• Free N, S, P elements, less casting defects, higher surface quality
• Co2 gas is low toxic and eco-friendly
• Eliminate hot cracking, improve the casting surface roughness.

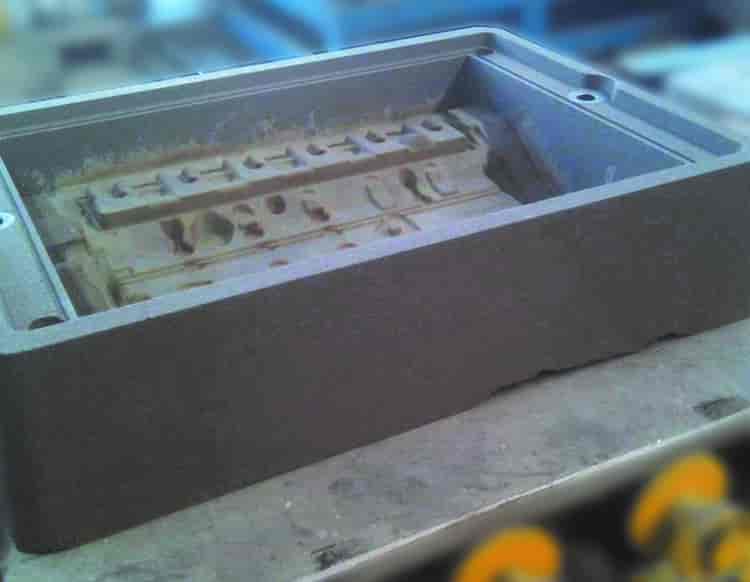

Cold Box process is a high performance, highly productive core manufacturing method. The specific feature of the cold box process is its high reactivity, which makes short production cycles possible for core production.

• Low emissions
• High strength
• Low odour
• Non-hazardous solvents
• Long sand bench life
• High dimensional consistency of the core
• Excellent stripping performance

Cold Box resin series for sand core assembling process (for ferrous alloy castings)

• High strength, easy for handling with robot
• Excellent stripping performance with less frequency usage of release agent, up to 20% higher efficiency of the core making
• Excellent collapsibility performance
• Excellent sand flowability

Super low addition level of Cold box resin series (for Ferrous and Non Ferrous casting, especially for the cores with complicated structure with thin wall)

• Super high strength
• Up to 20% binder usage reduction
• Lower viscosity with better sand flowability
• Eco-friendly, up to 20% lower aromatic content
• Lower VOC

Aromatic Free Cold Box resin series (for ferrous and non-ferrous alloy castings)

• Free of aromatic content
• Lower VOC emissions
• No deformation after coating application
• Lower smell, lower odour
• Good stripping performance

• Low Emission
• Low nitrogen content
• Excellent surface finishing
• Excellent control on curing time
• Excellent bench life / stripping time ratio
• Excellent core & mould strengths
• Excellent dimension consistency of the mould / cores

Aromatic free phenolic Urethane No bake resin series (for ferrous alloy castings)

• Free aromatic content, up to 30% VOC emission reduction
• Free formaldehyde is less than 0.1%
• Excellent deformability to eliminate the cracks defect of the castings
• Lower viscosity
• Lower pinholes defect possibility

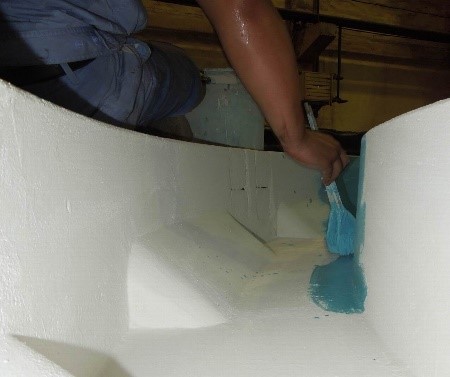

For Steel Castings

• Applicable for various sand cores / moulds made by resin and sodium silicate sand, for steel castings
• Good suspension properties, thixotropic and levelling property and easy ignition
• Brushing, Flowing, Dipping and spraying are proposed coating method
• Low gas emission, reducing gas hole defect
• Easy to ignite and burn well, no bubble or crack high strength
• Excellent impact resistance and permeability resistance under high pouring temperature of steel casting

For Iron Castings

• Applicable for various sand cores / moulds made by resin, sodium silicate and green sand. Excellent thixotropic and levelling properties, minimises brush marks
• Good suspension properties, easy to use
• Low gas evolution, reducing blowhole defect
• Coating layer will not crack or bubble after drying. High strength at normal and high temperature
• Good anti-burn-on properties, good surface finish, easy to clean

Wet Powder Coatings

• Less solvent
• Reduce cost of packaging and freight charge
• Reduce environment impact

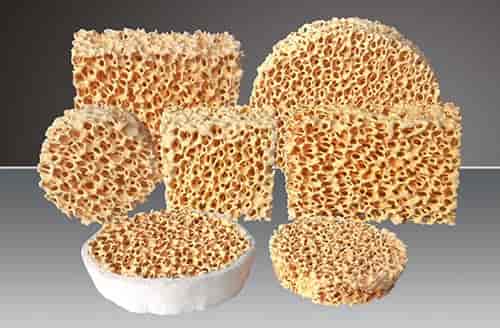

FCF-1Z Zirconium oxide foam ceramic filters

• For Stainless steel, carbon steel and large iron castings liquid metal filtration

FCF-1S Carbon Bonded foam ceramic filters

• For carbon steel, low alloy steel, high manganese steel, big iron castings liquid metal filtration

FCF-2 Silicon Carbide Foam ceramic filters

• For Ductile iron, grey iron and non-ferrous castings liquid metal filtration

FCF-3 Aluminium Oxide Foam Ceramic Filters

• For aluminium castings

FCF-4 Foam Ceramic Cast house filters

• For the filtration of aluminium metal stream
